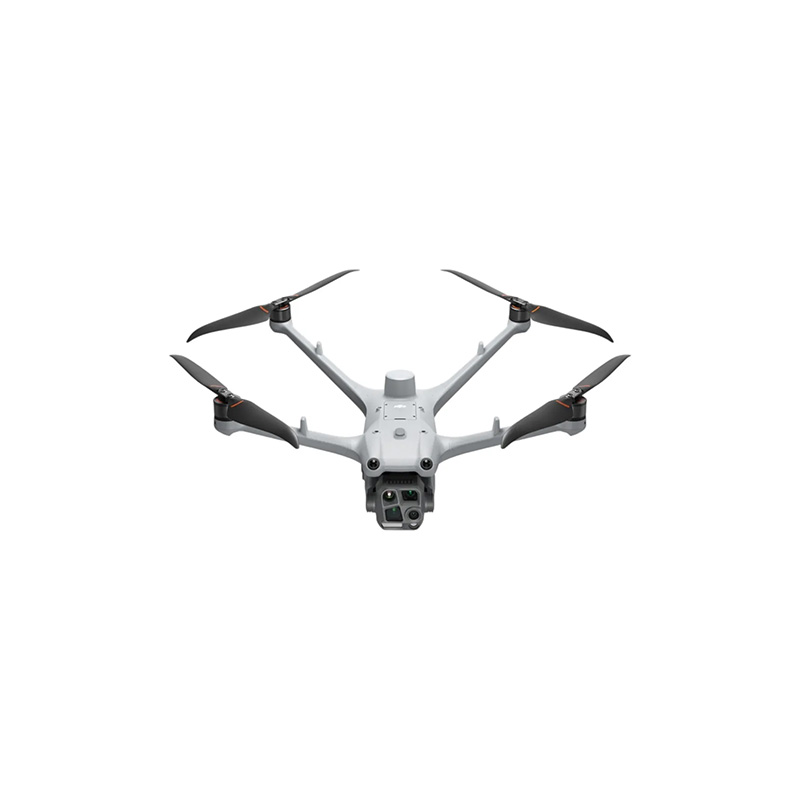

DJI Matrice 4TD Thermal Drone compatible with Dock 3 – *DRONE ONLY*
DJI Matrice 4TD Thermal Drone compatible Dock 3 – *DRONE ONLY* | UK
DJI Matrice 4TD Thermal Drone compatible with Dock 3 – *DRONE ONLY*(DJIMAT4TDRC2UK-2) Autonomous Operations Solution The DJI Matrice 4TD Thermal Drone with Dock 3 compatibility revolutionizes enterprise operations through fully automated workflows. Designed for 24/7 mission readiness, this integrated system enables scheduled flights with self-managing takeoff/charging cycles, eliminating manual intervention for routine inspections and surveillance tasks. Its ruggedized Dock 3 station ensures weather-resistant protection (-20° to 50°C operational range) while maintaining continuous power supply. Advanced Thermal Imaging Capabilities Equipped with a high-resolution 640×512 thermal sensor operating at 30Hz, the drone detects thermal anomalies with ≤50mK sensitivity. Key applications include: Infrastructure Inspection : Identify overheating components in energy grids/facilities Search & Rescue : Locate heat signatures through foliage and darkness Agricultural Monitoring : Detect crop stress/variability via multispectral analysis The integrated laser rangefinder provides centimetre-accurate positioning for precise data collection. Enterprise-Grade Performance This thermal drone delivers exceptional endurance with a 90-minute flight time , supporting: Heavy payload configurations (RTK module/loudspeaker compatible) IP55-rated weather resistance for all-condition operations 6-directional obstacle avoidance in complex environments Compatible with DJI FlightHub 2 for centralized fleet management across multiple Dock 3 stations. Precision Data Collection The synchronized dual-sensor gimbal captures simultaneous thermal and visual data with: 32x optical zoom for detailed visible-light imaging Temperature measurement accuracy of ±2°C (±2%) across -20°-500°C range Automated PDF report generation through DJI Thermal Analysis Tool 3.0 Industry-Specific Advantages For public safety: Rapid nighttime deployment identifies suspects or missing persons For energy sector: Automated pipeline/power line inspections reduce downtime by 40% Conservation use: Wildlife population monitoring without habitat disturbance Learn More : DJI
Brand: DJI
SKU: DJIMAT4TDRC2UK-2
Category: Thermal
Price: EUR 5935.00
Key Features
- dji
- thermal
- thermal drones
- 1850 g
- 2090 g
- 377.7×416.2×212.5 mm (l×w×h)
Specifications
- Brand: DJI
- SKU: DJIMAT4TDRC2UK-2
- Weight: 1850 g
- Max Takeoff Weight (Standard Propellers): 2090 g
- Dimensions: 377.7×416.2×212.5 mm (L×W×H)
- Diagonal Wheelbase: 438.8 mm
- Front Motor Left-Right Wheelbase: 383.0 mm
- Rear Motor Left-Right Wheelbase: 343.0 mm
- Front-Rear Wheelbase: 341.6 mm
- Max Ascent Speed ( Normal Mode): 6 m/s
- Max Ascent Speed ( Sport Mode): 10 m/s
- Max Descent Speed ( Normal Mode): 6 m/s
- Max Descent Speed ( Sport Mode): 8 m/s
- Max Wind Speed Resistance: 12 m/s
- Max Flight Time: 54 minutes
- Max Operating Radius: 10 km
- Max Flight Distance: 43 km
- Max Pitch Angle (Normal Mode): 25°
- Max Pitch Angle (Sport Mode): 30°
- Max Angular Velocity: 200°/s
- Operating Temperature: -20° to 50° C
- Ingress Protection Rating: IP55
- Motor Model: 2611
- Propeller Model1364F: foldable low-noise anti-ice propellers
- RTK Model: Integrated on the aircraft
- Beacon: Integrated on the aircraft
- Wide (Camera Sensor): 1/1.3-inch CMOS, Effective Pixels
- Medium Tele (Camera Sensor): 1/1.3-inch CMOS, Effective Pixels
- Telephoto (Camera Sensor): 1/1.5-inch CMOS, Effective Pixels
- Lens FOV: 82°
- Lens Equivalent Focal Length: 24 mm
- Lens Aperture: f/1.7
- Lens Focus: 1 m to ∞
- ISO Range (Normal Mode): ISO 100 to ISO 25600
- Wide Camera (Night Scene Mode): ISO 100 to ISO 409600
- Midum Tele Camera (Night Scene Mode): ISO 100 to ISO 409600
- Tele Camera (Night Scene Mode): ISO 100 to ISO 819200
- Shutter Speed: 2-1/8000 s
- Max Photo Size Wide: 8064 × 6048
- Max Photo Size Medium Telephoto: 8064 × 6048
